Carport Ralf 36 m2

The support posts and load-bearing beams of the car shelter are made of glulam, all other construction material is grade C24 planing material.

For roofing T20 trapezoidal sheet in a suitable shade. It is possible to order additional walls for the shelter at an additional cost. You can order the walls in modules to close only the sides you want. You can order up to four sidewall modules and two backwall modules for this model.

Osasto:

Kuvaus

Width

600 cm

Depth

600 cm

Height

270 cm

Area

36 m2

Bearing beams

14 x 14 cm

Entrance width

572 cm

Entrance height

225 cm

Material

Glulam

Roof beams

11.5 x 22.5 cm

Roof material

T20 trapezoidal sheet

Roof angle

2

Roof load capacity

250 kg/m2

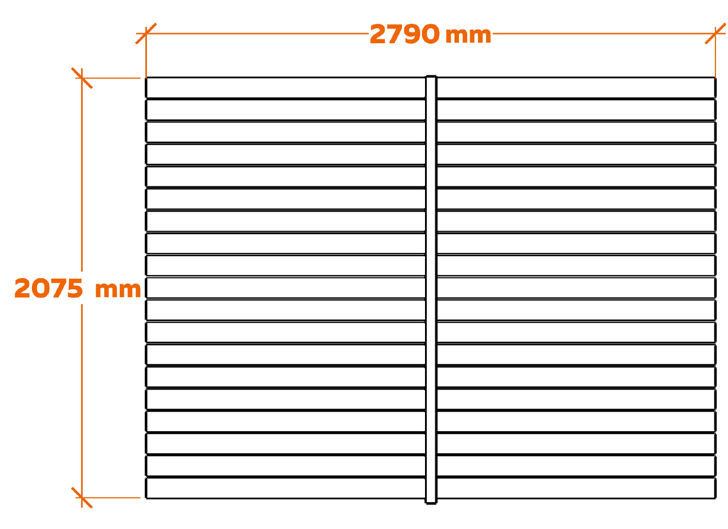

Backwall module

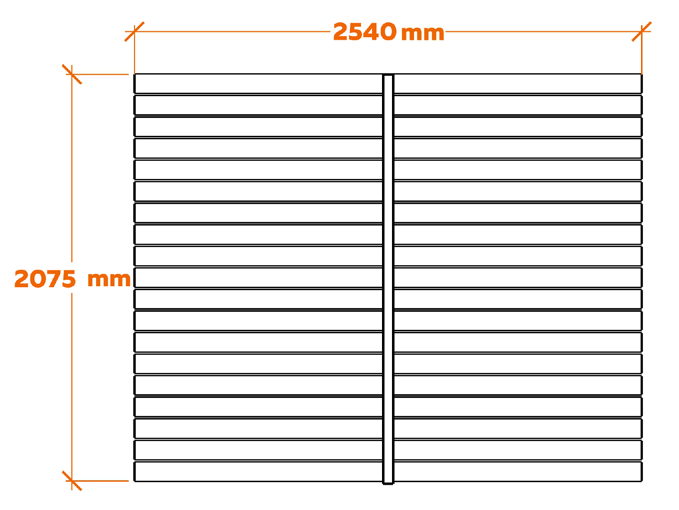

Sidewall module

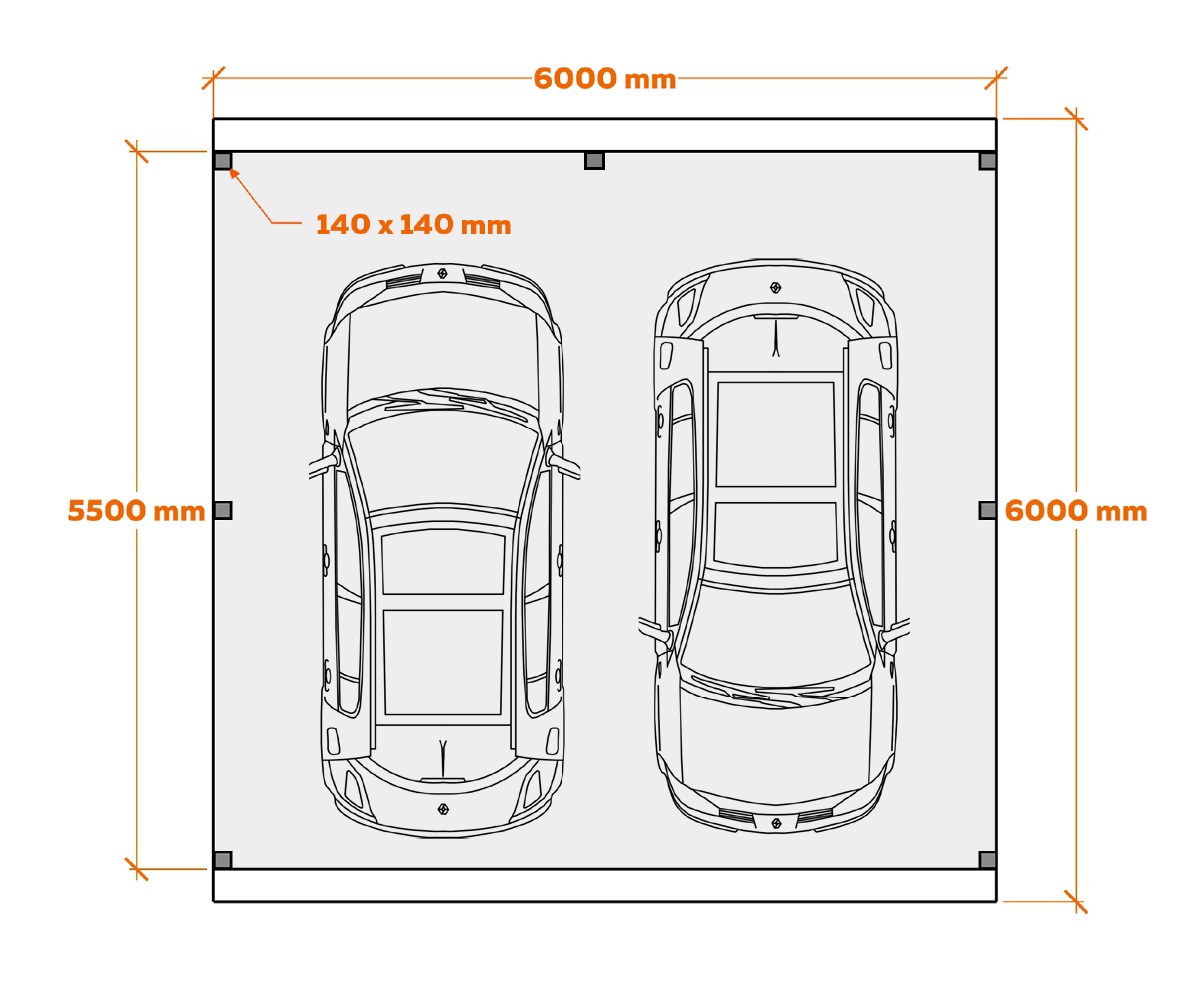

Ralf 36 m2 measurements

Color options

Optional extras

  • Painting /impregnation of entire wooden material in a suitable tone.

  • Sidewall module – 310€ / ea

  • Backwall module – 325€ / ea

Product’s benefits

  • High quality and long-lasting materials

  • Fast and clean installation

  • Flexible and cooperative service

  • Possiblity to choose from entire RAL color chart
